The Unitron UE-33 3.3 kW wind turbine is engineered to deliver efficient energy production in medium-wind areas. With a rated wind speed of 10.5 m/s and peak output of 3,650W, it provides reliable power for off-grid applications. The turbine features a passive tail vane yaw system, and its PM 3-phase alternator operates at variable speeds for optimal performance. The rotor diameter is 4.65m, with a high tip speed ratio of 8.5, ensuring efficient conversion of wind energy. This wind turbine offers exceptional durability with an operating life of 20 years and comes with a 2-year warranty. It is suitable for residential and industrial power generation and has easy-to-maintain components that contribute to its long-term reliability.

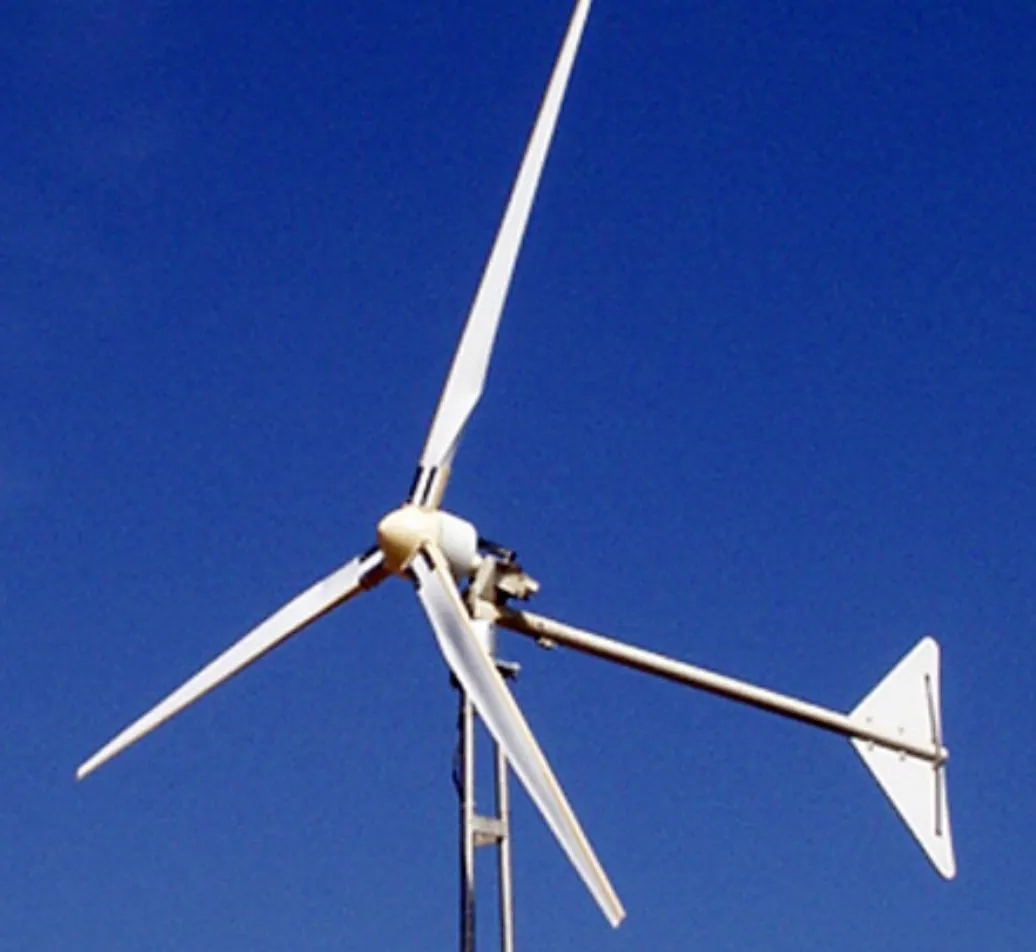

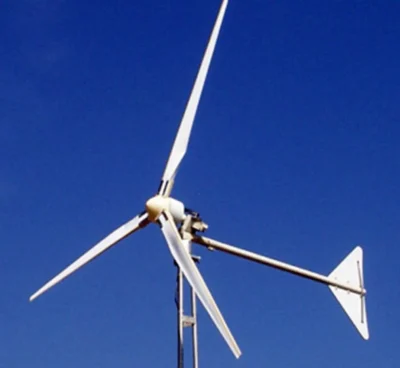

Unitron UE-33 3.3 kW Wind Turbine
The Unitron UE-33 is a high-performance, 3.3 kW wind turbine designed for efficient energy generation in areas with average wind speeds of 10.5 m/s (24 mph). With a 16.4 m? swept area and carbon fiber composite blades, it ensures reliable power production and long operational life. It offers easy maintenance and has a survival wind speed of up to 55 m/s.
Brands | unitronenergy |
---|---|
Application | Residential power generation, off-grid energy solutions, rural areas, small agricultural sites, and small-scale businesses. |
Certification | ISO Certified, CE Marking, RoHS Compliance. |
Key Features | High efficiency with Class "H" insulation, carbon fiber composite blades, passive yaw system, long operational life (20 years), hydraulic-assisted uptilt governor, and high survival wind speed of 55 m/s. |
Generator | PM 3-phase alternator (variable speed), insulation Class "H" with efficiency >87%. |
Voltage Options | 12 to 48 VDC / 60 to 140 VDC LV and HV options available for varied application needs. |
Warranty | 2-year warranty with long operational life of 20 years. |
Rated Output | 3300W |
