The Unitron UE-15 1.5 kW wind turbine is ideal for small-scale energy production in areas with average wind speeds of 10.5 m/s (24 mph). It delivers a peak output of 1,700W and a rated output of 1,500W, ensuring efficient power generation for homes, farms, and small businesses. With a rotor diameter of 3.2m and a swept area of 9.2 m?, the turbine is designed for optimized wind energy capture. The unit features a PM 3-phase alternator that operates at variable speeds for increased efficiency, along with carbon fiber composite blades for enhanced durability. The turbine is also equipped with an uptilt hydraulic-assisted governor, providing automatic shutdown when wind speeds exceed safety limits. It comes with a 2-year warranty and has a 20-year operational life, requiring only annual inspections for maintenance.

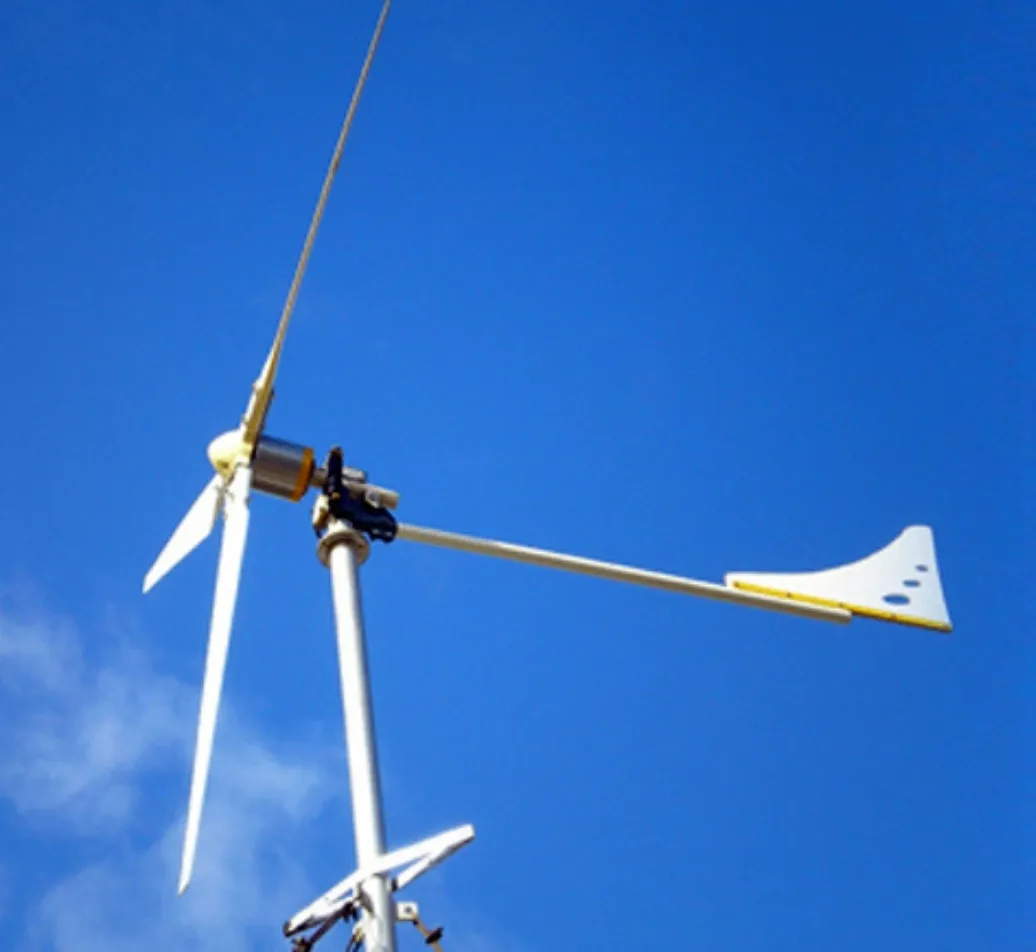

Unitron UE-15 1.5 kW Wind Turbine
The Unitron UE-15 is a compact, 1.5 kW wind turbine designed for efficient energy generation in moderate wind conditions. With a 3.2-meter rotor diameter and carbon fiber composite blades, it provides a reliable and cost-effective power solution for residential and off-grid applications. The turbine features a passive tail vane yaw system and a robust 20-year operating life with minimal maintenance.
Brands | unitronenergy |
---|---|
Application | Residential power generation, off-grid energy solutions, rural areas, small agricultural sites, and small-scale businesses. |
Certification | ISO Certified, CE Marking, RoHS Compliance. |
Key Features | High efficiency with Class "H" insulation, carbon fiber composite blades, passive yaw system, long operational life (20 years), hydraulic-assisted uptilt governor, and high survival wind speed of 55 m/s. |
Generator | PM 3-phase alternator (variable speed), insulation Class "H" with efficiency >87%. |
Voltage Options | 12 to 48 VDC / 60 to 140 VDC LV and HV options available for varied application needs. |
Warranty | 2-year warranty with long operational life of 20 years. |
Rated Output | 1500W |
