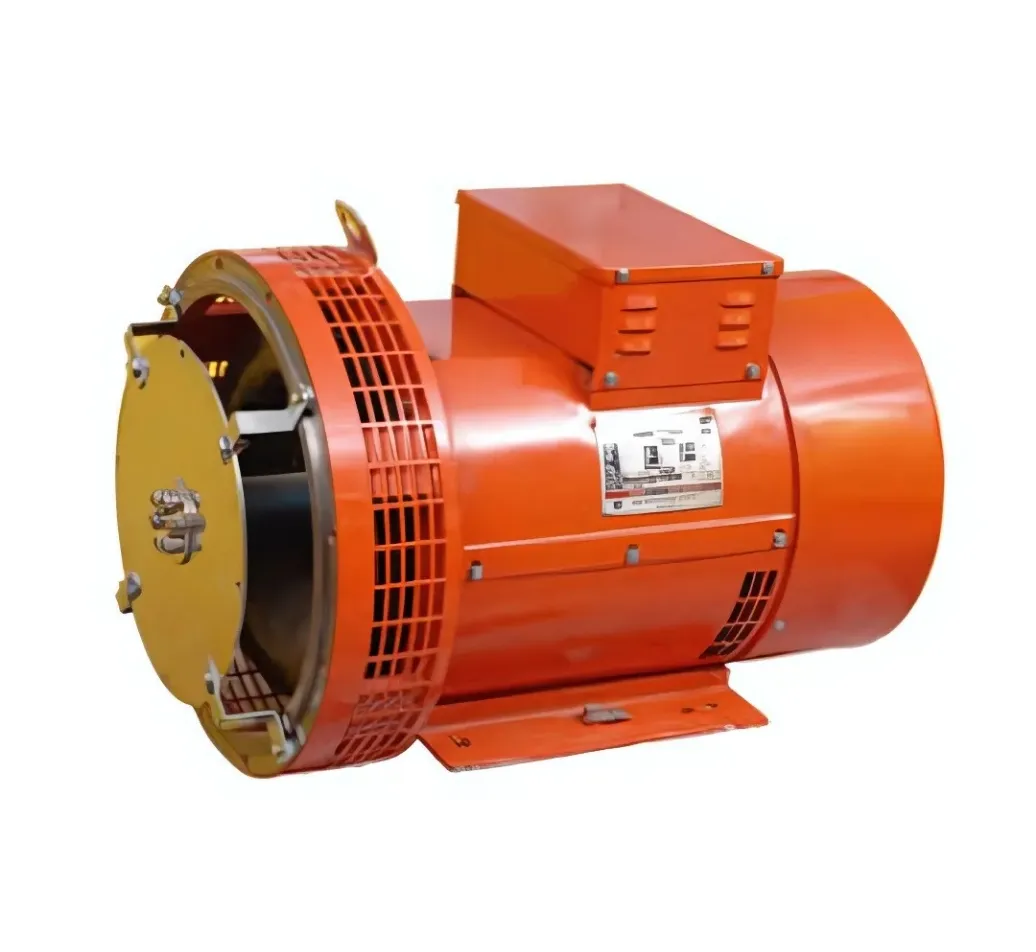

The AC Generator range (5 to 90kVA) is engineered for compactness and aesthetic appeal, ensuring suitability for both industrial and marine environments. It is designed to meet all leading industrial and marine standards, ensuring reliability and high performance in demanding conditions.

These generators are built with a simple design, which makes them easy to install and maintain. They are wound with 2/3 pitches in the stator to eliminate harmonics, improving operational efficiency. The Automatic Voltage Regulator (AVR) is sophisticated yet reliable, capable of handling non-linear loads, ensuring stable power supply.

The self-lubricating, sealed type ball bearings ensure durability with minimal maintenance. These generators come with a paralleling operation facility as an optional feature in frames 4AB200 and 4AB225, allowing easy synchronization for larger installations.

The generator specifications include:

Three-phase or single-phase options
Frequency: 50 Hz
Voltage: 415/240 V
Power factor (lag): 0.8
Ambient temperature: 40?C
Altitude: Up to 1000 meters
Speed: 1500 rpm
Mounting: Horizontal foot mounted
Duty: Continuous operation
Voltage regulation: +/-1% with 4% variation in prime mover speed
Waveform distortion (THD): Less than 3%
Overload capacity: 10% overload for 1 hour, once every 12 hours
Unbalance: 25% with no phase current exceeding rated current
The lubrication type is grease-lubricated, and the enclosure is IP 20 with IC 01 cooling, suitable for various operational conditions.
